Protective SHIELD Proximity Detection

Protective SHIELD
Proximity Detection

  • Identifies hazards external to the basket
  • Alarm and motion stop options
  • Engineered interlock control
  • Retrofit to most machine types
  • Warning prior to machine stop
  • Customised settings using Shield App
  • Warranty 1 year

REQUEST QUOTE
BrandPROTECTIVE
Tags
Categories

Proximity Detection Secondary Guarding

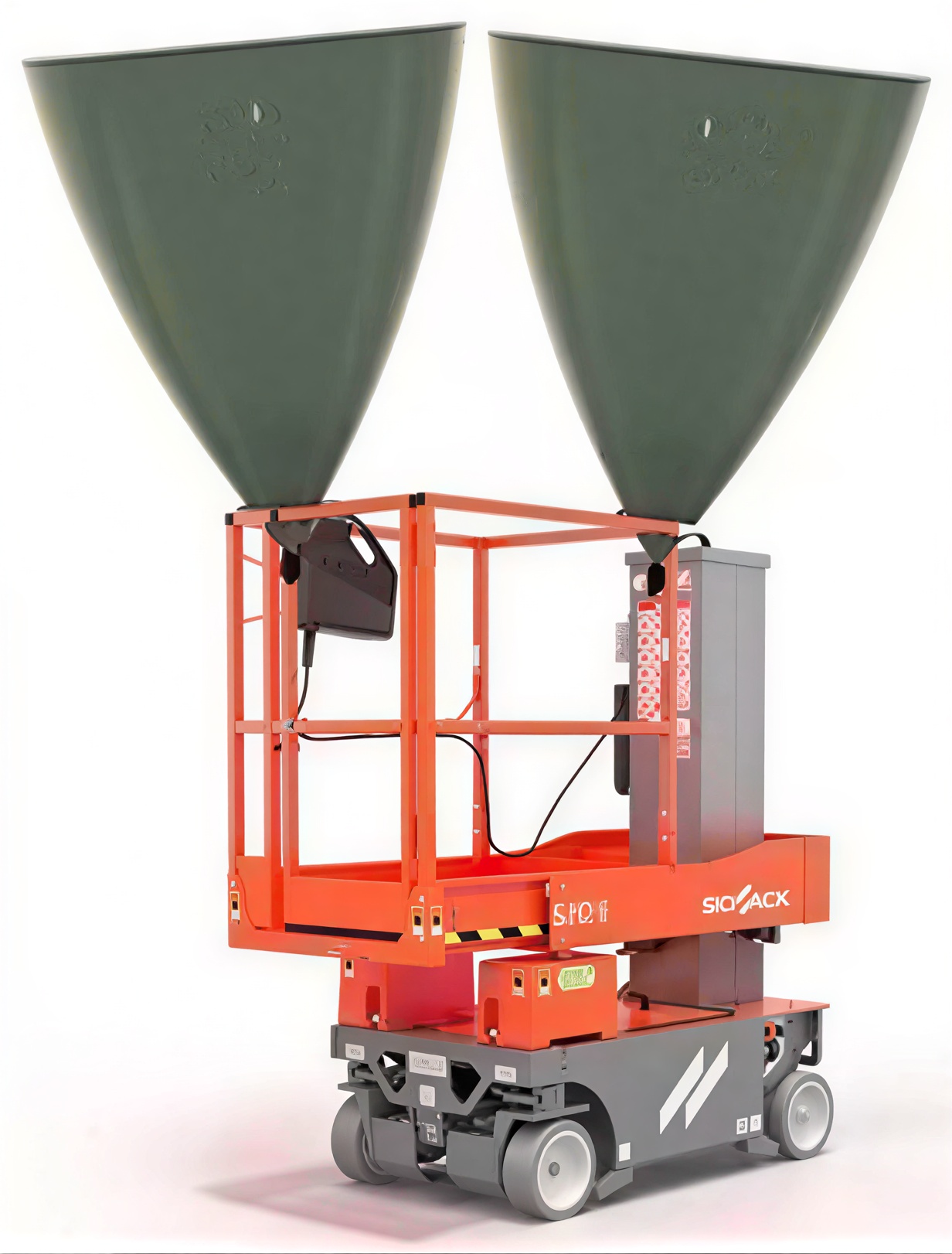

Using ground-breaking mil-spec sensor technology for proximity detection and control, our Protective Shield system engages the worker protection function to identify potential hazards before an elevated work platform (EWP) incident occurs. provides excellent secondary guarding protection in industrial proximity control..

Features

  • Sensor Sensing Range: 280mm Min. – 4500mm Max
  • Mounting: Four mounting points – M3.5 Screws or M4 Bolts
  • Master Control Unit Power: 12- or 24-volt automotive (4.8 – 40 VDC)
  • Operator Interface: GUI via Bluetooth® to Android® or iOS® device
  • Communications: LIN-BUS
  • LIN-BUS Limitations: Max 8 Nodes, Max 40m length
