Cranes operation in windy conditions could create a potentially dangerous situation. The wind forces exerted on both the crane and the load can affect the strength and stability of the cranes. In order to ensure safety during lifting operations, it is very important for the members in the lifting team to know the wind speed and resistance.
The challenge to know the wind speed is the connection between sensor and display. Traditional cabled-anemometer wouldn’t work well with the staggering heights among cranes and complex working condition. WR3-Plus Wireless anemometer offers a trusted and stable wind measurement solution.
# ANEMOMETER3

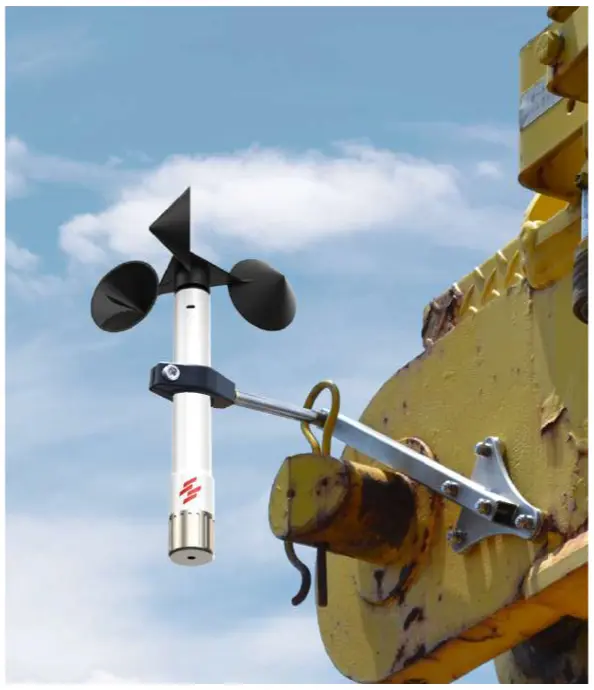

Wind Speed Sensor 0-150MPH
The wind speed sensor is suitable for onshore and offshore system applications. Compatible with the full range of Robway Systems. Replacement wind cups are available.
Features
- Max 500m ultra-long wireless transceiver
- Audible & visual wind speed alarm
- Data recording up to 1 year
- Wind speed, temperature, air pressure measurements
- Max 3 years sensor battery life
- IP67 waterproof & impact resistant
- Fast & secure magnetic installation kit
Application Areas
- Cranes & Construction
- Marine, Ports & Offshore
- Film Production & Outdoor Entertainment
- Scaffolding & Temporary Structure
- Rigging & Communications Industry
- Wind Farm & Turbine
Instant Wind Speed Alarm
WR-3 Plus displays the live wind speed value in selectable measurement units (m/s, knots, MPH, km/hr). Users can set a wind speed warning limit on based on local operation safety standards. An audible and visual alarm will be trigger when the limit has been reached. Each sensor has a unique wireless address that can connect to several displays to notify multiple stakeholders on-site.
Data Recording
WR-3 Plus capture and storage wind speed, temperature, air pressure measurements. 64MB built-in memory and outstanding battery life supports up to 1 year of continuous data recording (based on 10s logging interval, adjustable: 2s, 5s, 10s, 1 min, 5 mins, 10 mins, 60 mins).
