The RT550E rough terrain crane offers the highest capacity and the longest boom in the 45 t (50 USt) class. Its compact size allows for easy transportability between jobsites and makes it best suited for congested work areas and everywhere there is need for long reach in a very compact footprint. This crane also features Manitowoc’s Crane Control System (CCS) and Boom Configurator Mode for easy and efficient operation of the boom. The load sensing hydraulic system design, coupled with ECO mode, ensures reduced fuel consumption and emissions.
Equipment Specification

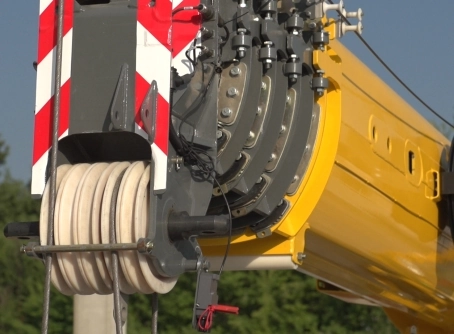

- Five-section, MEGAFORM™ boom with TWIN-LOCK™ pinning system – Best in class performance with a 39 m (128 ft) main boom.
- Optional 8 m (26.2 ft) offsettable boom extension provides additional reach and versatility to win more jobs.
- 5100 kg (11,244 lb.) permissible line pull and up to 112 m/min (367 fpm) single line speed – Less rigging, higher efficiency and productivity.
- Hoist access platform – better access and serviceability

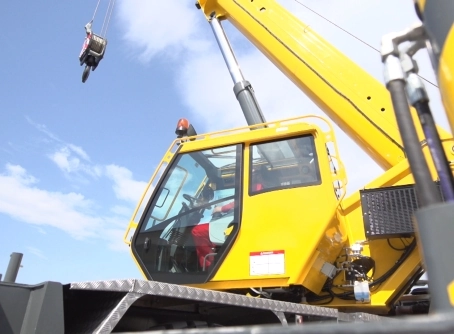

- Full vision cab with a high-output heating & air conditioning system that maximizes operator comfort.
- Crane Control System (CCS) – Intuitive and user-friendly operating system with armrest mounted jog dial controls for easy input.
- Boom Configurator Mode increases efficiency and simplifies telescoping operation.
- Cummins QSB6.7L Euromot Stage5 or Tier3 diesel engine – Powerful and reliable performance.
- Four modes of steering increase jobsite maneuverability and makes crane positioning easier.
- Inverted outrigger jacks provide additional protection and ensure maximum reliability.
- Hydraulic disc brakes on all wheels – No additional air system, lower maintenance costs.
