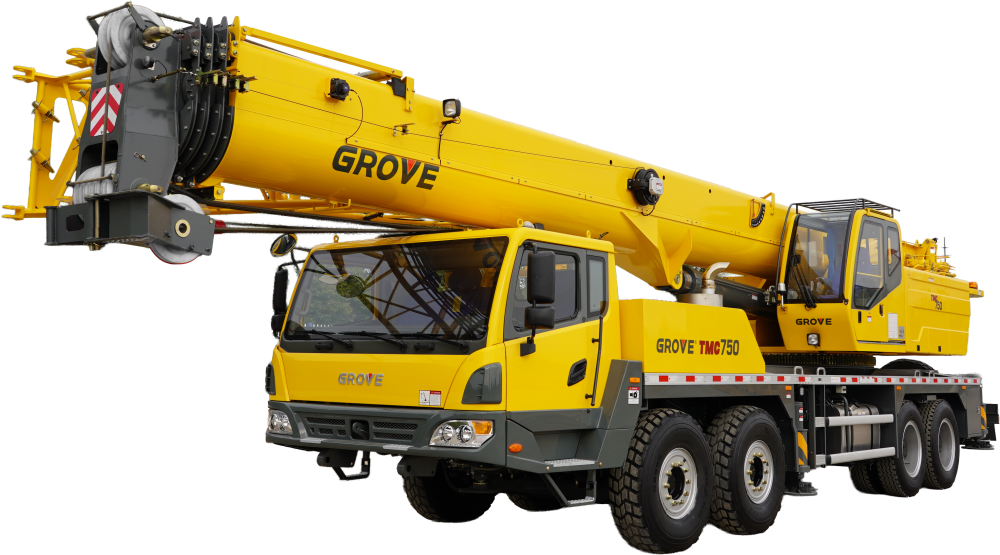

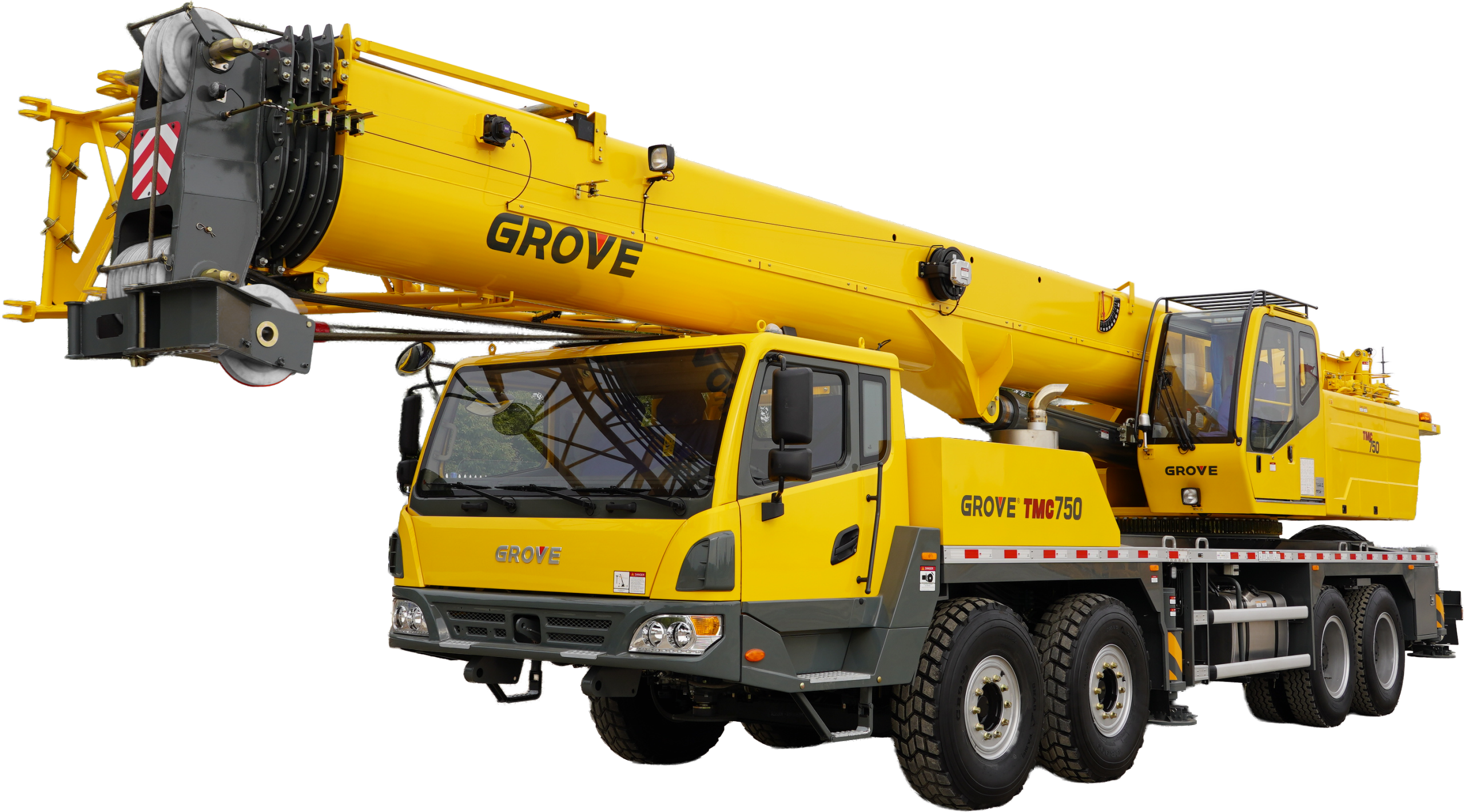

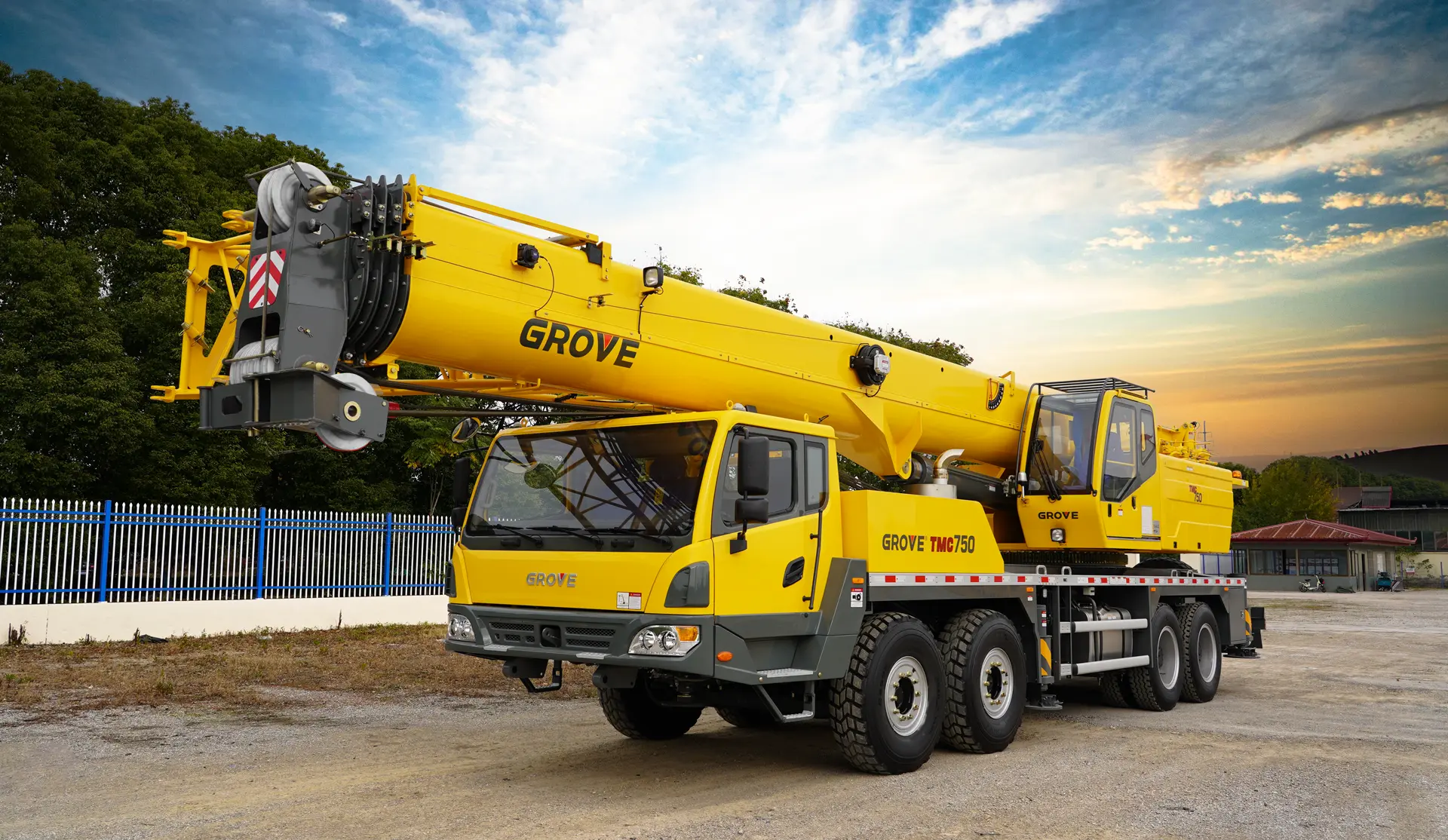

Compact and powerful 75t capacity truck crane

Compact dimensions, a 48 m five-section main boom, and capable of traveling with full counterweight, the TMC750 ensures a fast set-up and immediate readiness on all jobsites. The TMC750 features 17.5 m jib for maximum tip heights up to 65,7 m. A Cummins Dongfeng 375 HP engine mated to a 9 speed automatic transmission optimizes power and fuel efficiency while providing gradeability up to 46% and speeds up to 85km/h.

Equipment Description

• 12,5 m to 48,0 m five section boom. Maximum tip height 65,7 m.
• Boom angle from -2° to +80° in 50 s.
• 360° slewing and max. slewing speed 2r/min.
• Cummins ISLe375 30 (Tier III), 275kW @ 2,100 rpm, 1,550 N-m torque @ 1,100 – 1,400 rpm.

Transport Axle

• 8 x 4
• 4 Axles in pairs: 2 steering axles, 2 driven axles.

Counterweight

• Total 13 t (a 1,5-ton fixed counterweight and 2,5-ton/4,25-ton/4,75-ton removeable counterweight)
