A leader in the 55 t class.

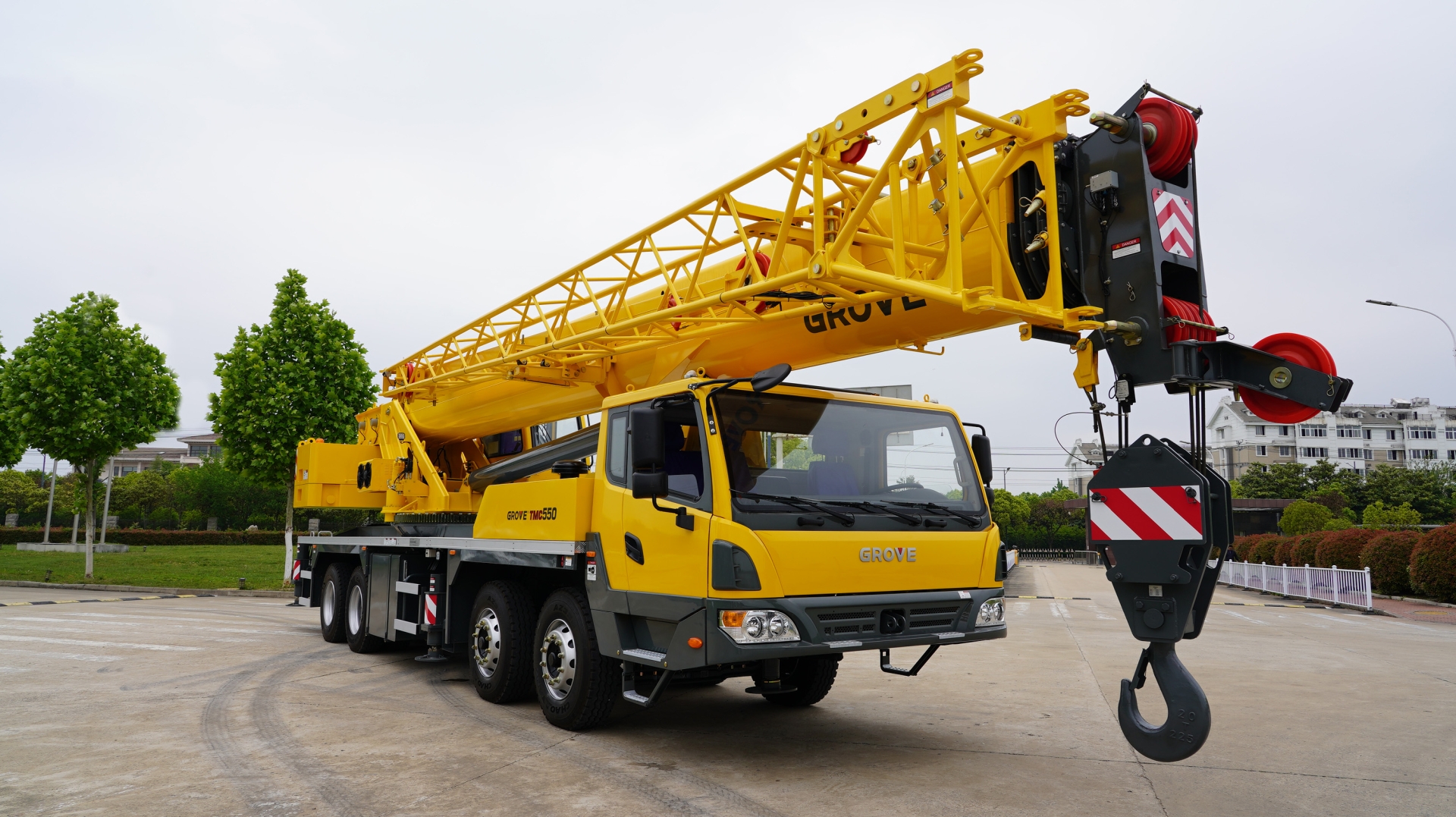

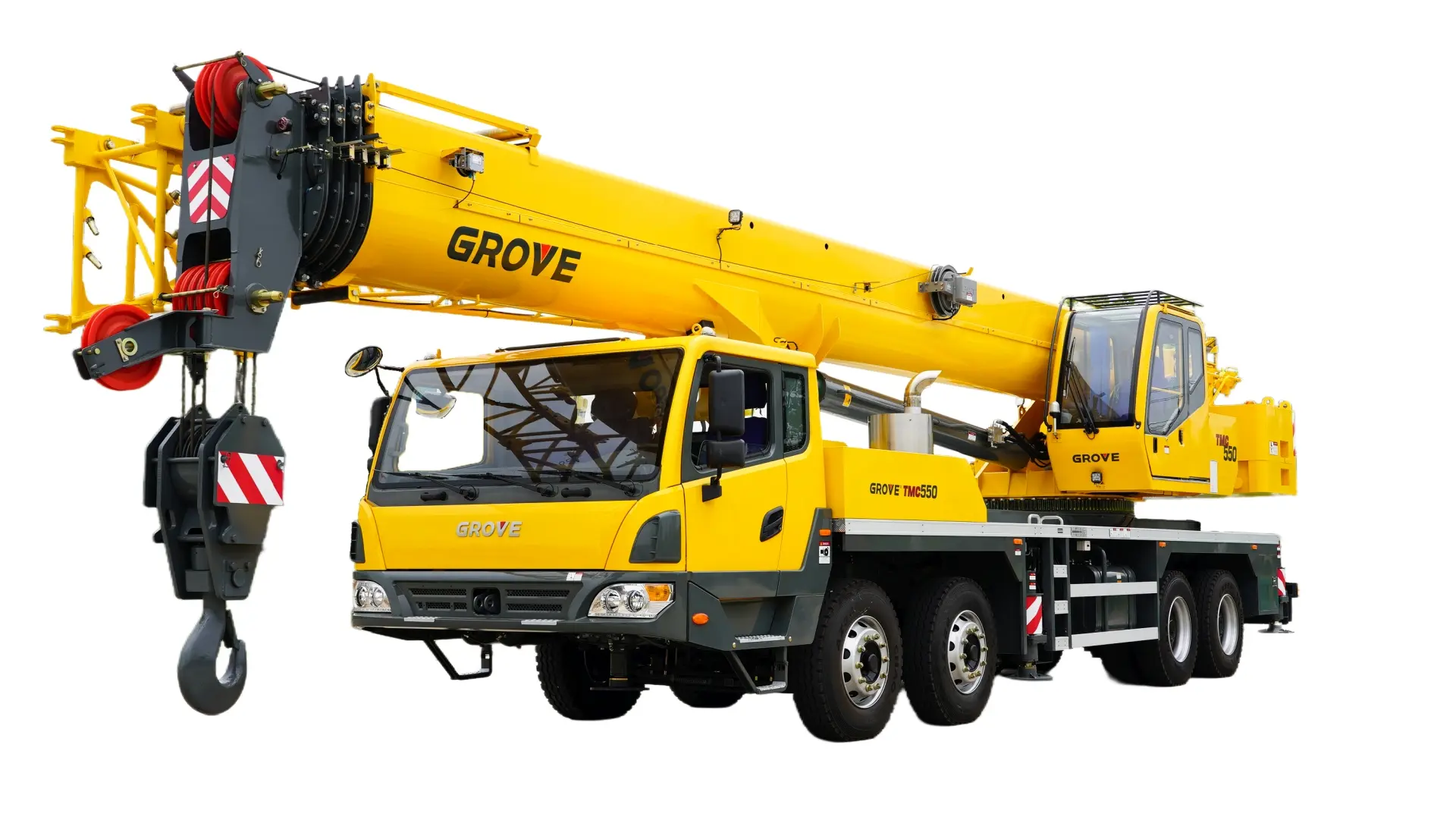

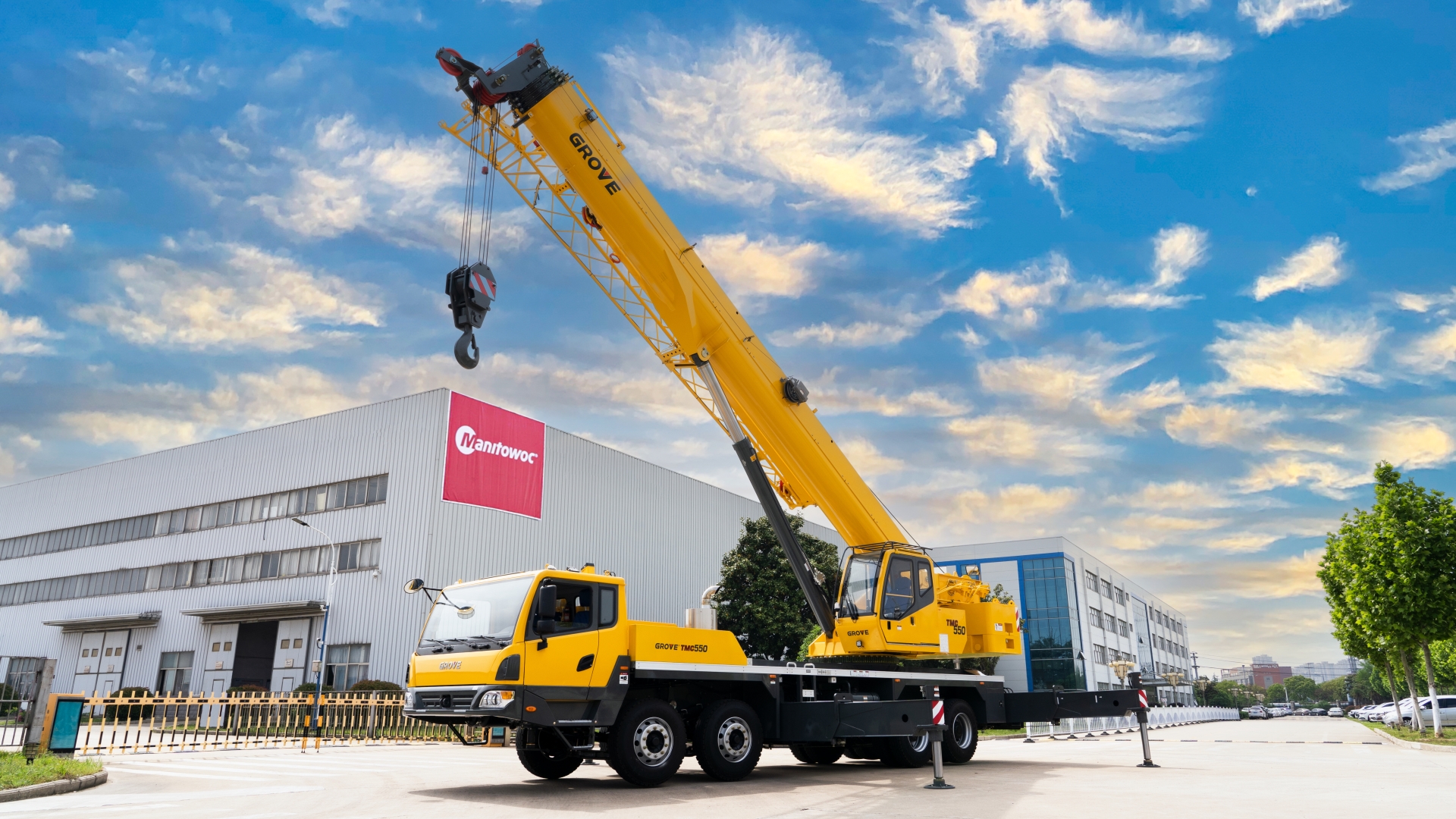

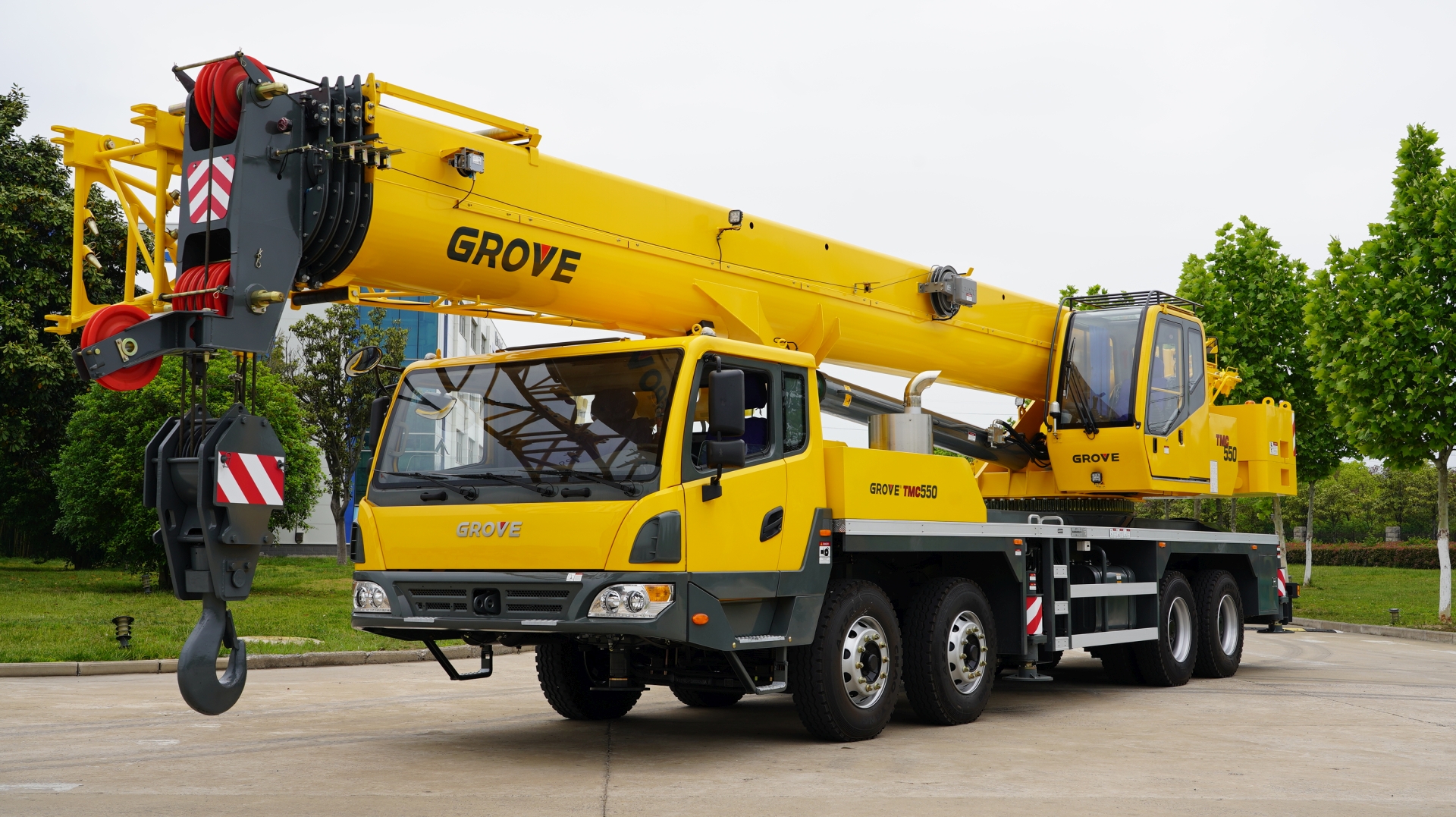

The TMC550’s 55 t lifting capacity and 45 m main boom give the strength and reach you need on the jobsite. The crane is equipped with a 16-meter two-stage jib for even greater reach.
A Cummins Dongfeng 340 HP engine mated to a 9 speed automatic transmission optimizes power and fuel efficiency while providing gradeability up to 45% and speeds up to 80km/h.
Equipment Description
- 11,6 m to 45,0 m five section main boom. Maximum tip height of 61,0 m.
- Boom angle from -2° to +80° in 45 s.
- Cummins ISLe340 30 (Tier III), 250 kW @ 2,100 rpm, 1,425 N-m torque @ 1,100 – 1,400 rpm.
Transport axle
- 6 x 4
- 4 Axles in pairs: 2 steering axles, 2 driven axles.
COUNTERWEIGHT
Total 10 t (a 6.5-ton fixed counterweight and a 3.5-ton removeable counterweight).
