Designed for superior roadability and fast setup.

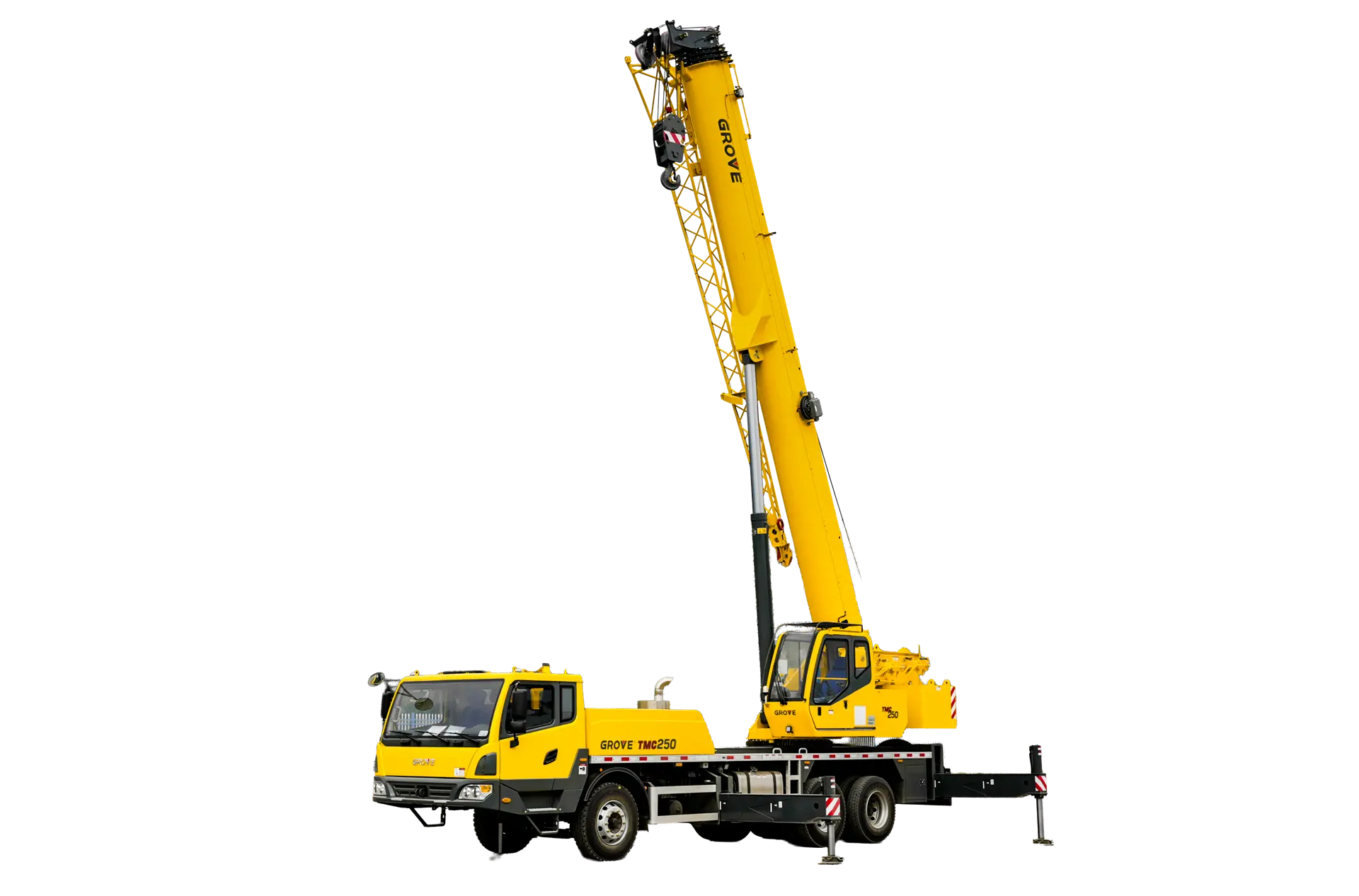

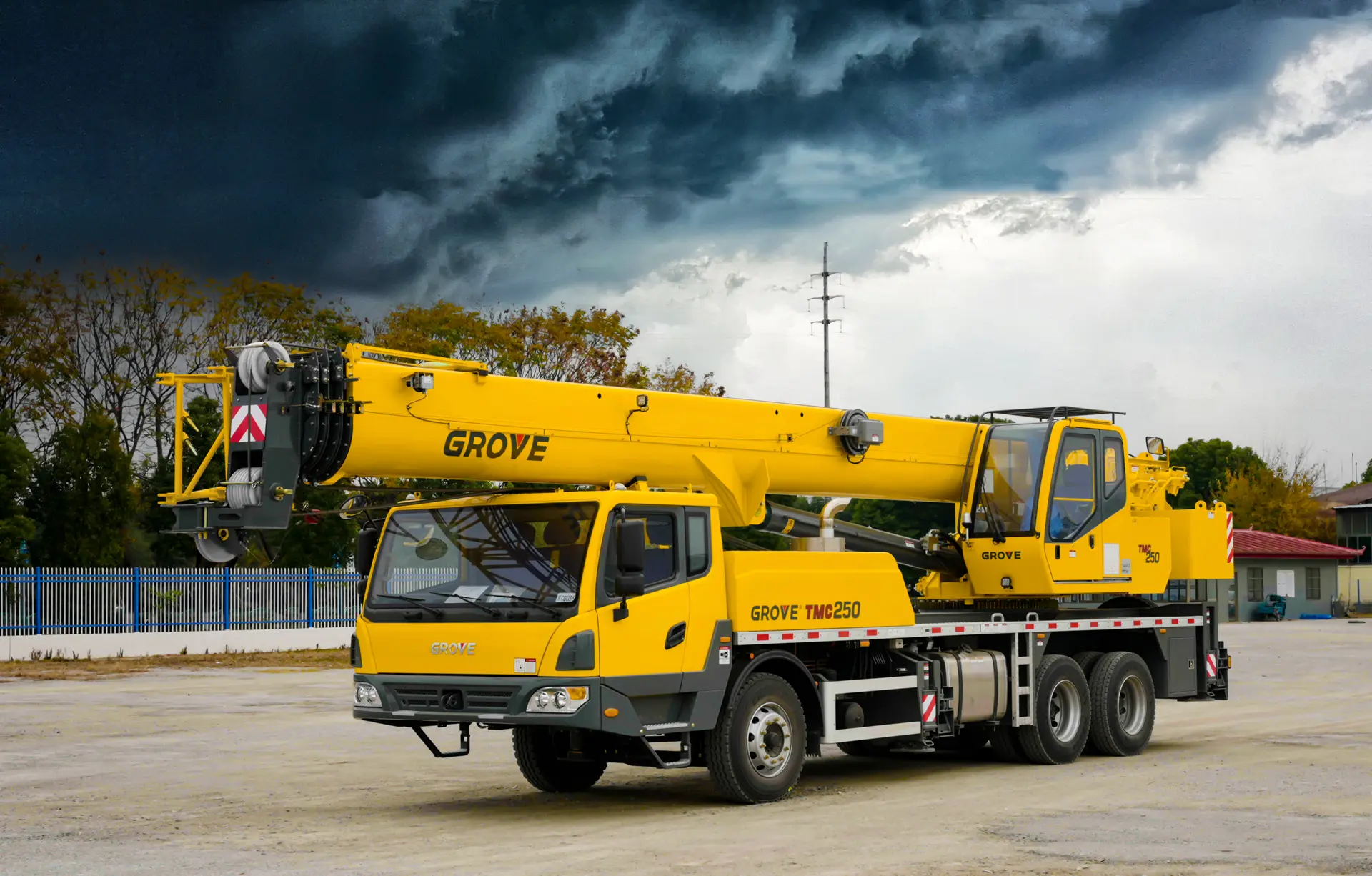

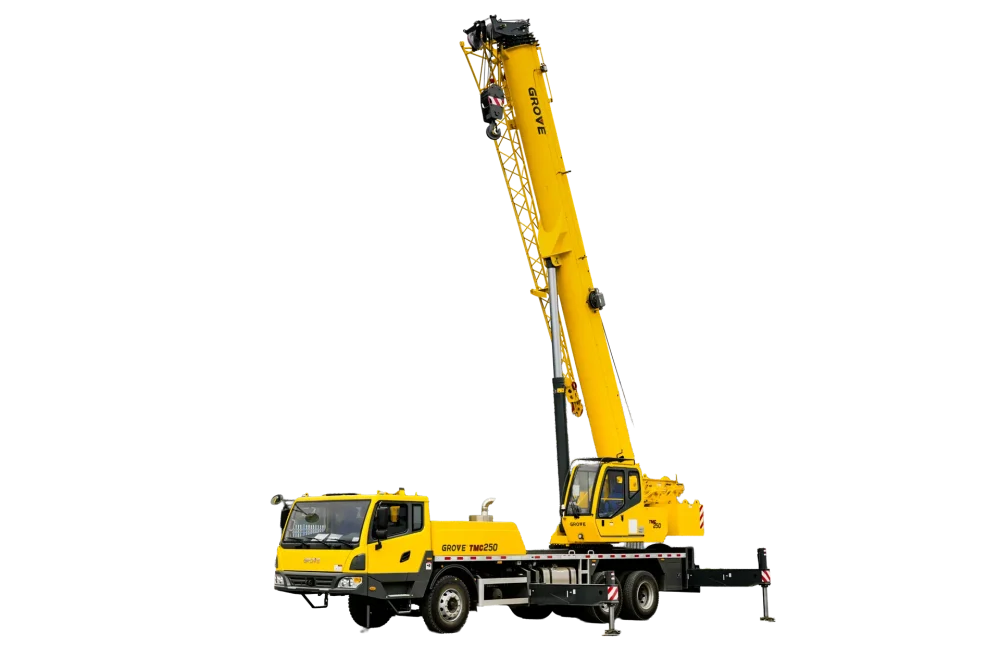

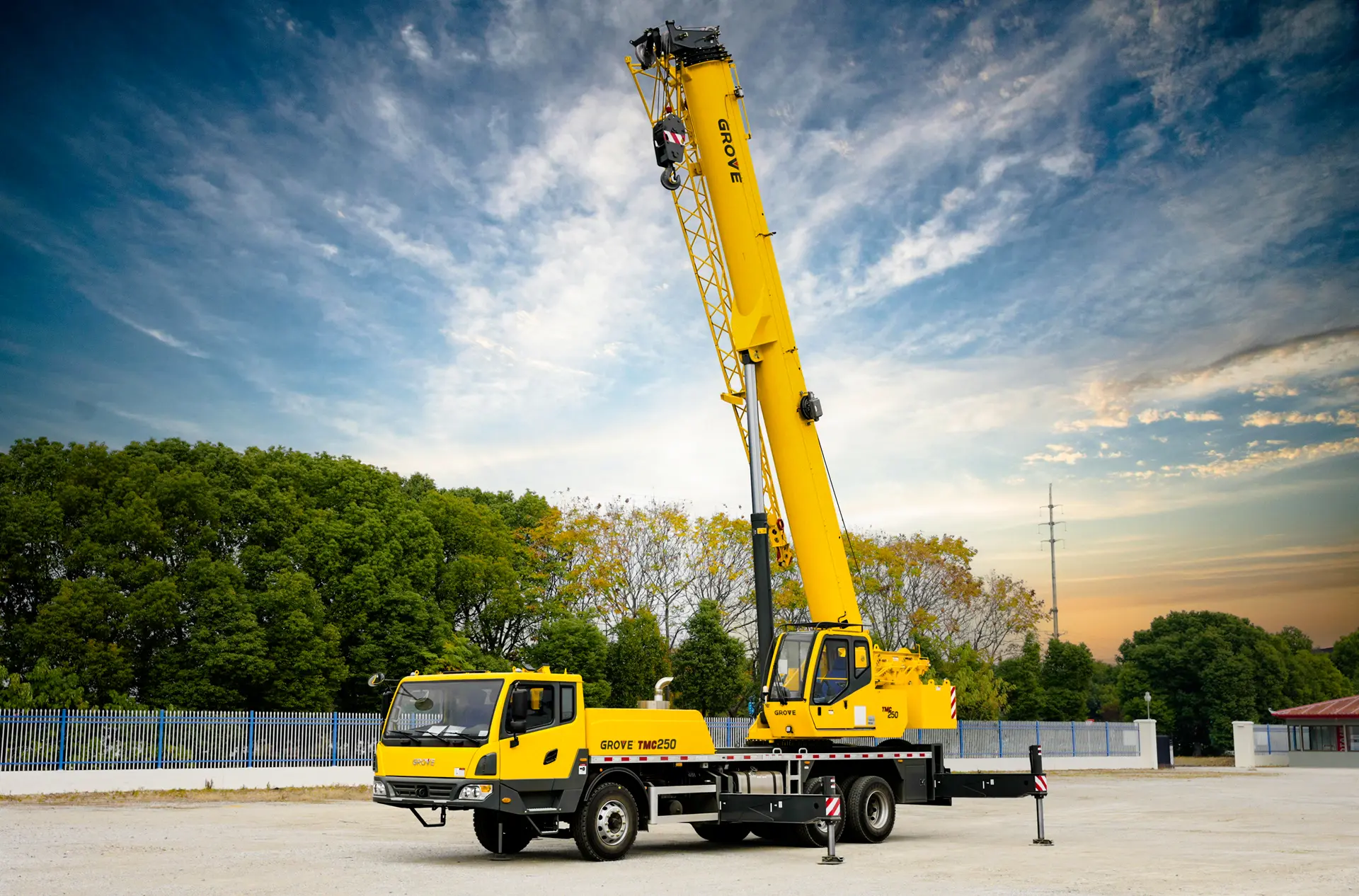

Very compact dimensions and all equipment on board guarantee a fast set-up and immediate readiness even on tight jobsites. The TMC250 features a five section 43 m main boom and an extra 9 m jib.
Cummins Dongfeng ISLe290 engine + Fast 9 speed transmission provides a powerful and fuel-efficient powertrain capable of a maximum speed of 80 km/h. Maximum gradeability is 40%.

Equipment Description

10,9 m to 43,0 m five section boom.
Maximum tip height 52,5 m.
Dongfeng Cummins ISLe290 30 (Tier III), 6-cylinder turbo-charged aftercooled diesel engine, 213 kW @ 2,100 rpm, 1,050 N-m torque @ 1,100 – 1,900 rpm.

Transport axle

6 x 4
3 Axles in pairs: 1 steering axle, 2 driven axles.

Counterweight

Total 7 t
